NNT High Pressure Regulator Ip65 Air Regulator Electric Pneumatic
Regulator
1. Product Description
The electric pneumatic regulator adjusts the cross-sectional area
of the spool according to the size of the control signal. So as to
achieve the process goals and requirements of adjusting the
pressure. The electric pneumatic regulator controls the flow rate
can be divided into two kinds. One is on-off control and the other
is continuous control.
Product Advantage
1.It can realize the stepless adjustment of pressure and speed,
avoiding the impact phenomenon when the normally open on-off valve
changes direction.
2.It can realize remote control and program control.
3.Compared with intermittent control, the system is simplified and
the components are greatly reduced.

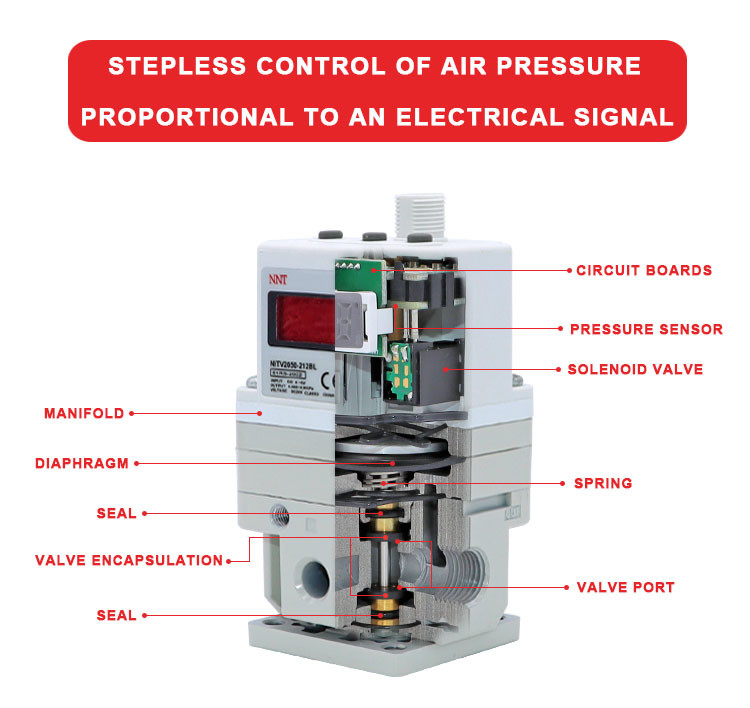

Product Components
Pressure Sensor:
1.Recation Speed:0.36s
2.Sensitivity:0.2%F.S. or less
3.Using Differential Signal Output:strong stability,consistent
pressure at different temperatures
4.The circut board has passed the EMC test and has strong
anti-interference,more pressure sensitive.
The Diaphragm:
1.Adopting Japanese Fujikura diaphragm,which has extremely natural
rolling movement and excellent pressure resistance.
2.No lubrication required.
3.No friction loss,almost no hysteresis loss.
4.leak-proof
5.Long life expectancy for 5 years.
Model
| NITV101口 NITV201口 NITV302口 | NITV103口 NITV203口 NITV303口 | NITV105口 NITV205口 NITV305口 |
| Minimum Pressure | Set pressure +0.1MPa | Set pressure +0.1MPa | Set pressure +0.1MPa |
| Set pressure range | 0.005~0.1MPa | 0.005~0.5MPa | 0.005~0.9MPa |
| Linearity | ±1%F.S.below | ±1%F.S.below | ±1%F.S.below |
| Repeatability | ±0.5%F.S.below | ±0.5%F.S.below | ±0.5%F.S.below |
| Sensitivity | 0.2%F.S.below | 0.2%F.S.below | 0.2%F.S.below |
| Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
Company Profile
NNT,Guangdong Nuonengtai Automation Technology Co., Ltd.is devoted
to provide high quality industrial pneumatic control components to
the domestic and international customers. We've been focusing on
products innovation, R&D(research and development) and quality
control, which also enables NNT in the peer enjoy a good
reputation.
Contact Us
Whatsapp:+86 17702626719
Wechat:17702626719
Email:Jacob@nntqd.com
FAQ
Q:How can i get the sample to chcek your quality?
A:After price confirmation,you can require for samples to check our
product detials.
Q:What can i get the price?
A:We usually quote within 24 hours after we get your inquiry.If you
are very urgent to get the price,please tell us in youre email so
that we will regard your price priority.
Q:What is your term of delivery?
A:We accept EXW ,FOB Shenzhen or FOB Dongguan.You can choose the
one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:Honestly,it depends on the order quantity and the season you
place the order.
